Instrumentation.c File Reference

#include <sys/time.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "Instrumentation.h"

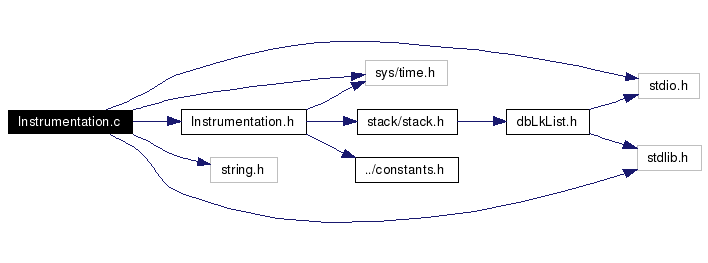

Include dependency graph for Instrumentation.c:

Go to the source code of this file.

Defines
#define	_INSTRUMENTATION_C_
Functions
InstData *	instCreate ()
	Starts the instrumentation data, zeroing everything.
void	instDestroy (InstData **instDataPointerAddress)
	Destroys the Instrumentation data, NULLing the pointer.
void	instSetDir (InstData *inst, char *dir)
	Sets instrumentation directory, where we write instrumentation data.
void	instEnterState (InstData *inst, InstState *state)
	enter a state, which can be a void state or am user state.
void	instLeaveState (InstData *inst)
	leaves the current state, computing times for it.
void	instSwitchState (InstData *inst, InstState *state)
	switches the state, which means the current one is computed but not stacked, and current is set to the new one
void	instSaveTimings (InstData *inst, char *filename, char *label)
	Saves all instrumentation data to a file, appending time there.
void	instSetUserStates (InstData *inst, char **userStates, int numStates)
	Adds user states to the instrumentation.

---

Define Documentation

#define _INSTRUMENTATION_C_

Definition at line 1 of file Instrumentation.c.

---

Function Documentation

InstData* instCreate (   )

Starts the instrumentation data, zeroing everything. Returns: the instrumentation data created Definition at line 9 of file Instrumentation.c. References _InstState_::isUserState, _InstState_::stateName, TIMER_NUM_VOID_STATES, _InstState_::timing, and _InstrumentationData::voidStates. Referenced by createFilterData().

void instDestroy (  InstData **  InstDataPointerAddress  )

Destroys the Instrumentation data, NULLing the pointer. Parameters: InstDataPointerAddress  the address of the Instrumentation data pointer, which will be NULL after this call Definition at line 34 of file Instrumentation.c. References _InstrumentationData::numUserStates, _InstState_::stateName, and _InstrumentationData::userStates.

void instEnterState (  InstData *  inst, InstState *  state )

enter a state, which can be a void state or am user state. The current state timings are computed and is stacked, so we can return to it later Parameters: state  the state we are changing to isUserState  is this state a user state? Definition at line 93 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::stackedStates, stPush(), _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstEnterState(), dsMCast(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSend(), and dsWriteBuffer(). Here is the call graph for this function:

void instLeaveState (  InstData *  inst  )

leaves the current state, computing times for it. The current state is set to the Top of the stack, which is poped Parameters: inst  the instrumentation data Definition at line 107 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::stackedStates, stPop(), _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstLeaveState(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSend(), and dsWriteBuffer(). Here is the call graph for this function:

void instSaveTimings (  InstData *  inst, char *  filename, char *  label )

Saves all instrumentation data to a file, appending time there. Parameters: filename  the name of the file to save label  a label to write with the timing results Definition at line 135 of file Instrumentation.c. References _InstrumentationData::instDir, MAX_FNAME_LENGTH, MAX_IDIR_LENGTH, _InstState_::stateName, TIMER_NUM_VOID_STATES, _InstState_::timing, and _InstrumentationData::voidStates.

void instSetDir (  InstData *  inst, char *  dir )

Sets instrumentation directory, where we write instrumentation data. Its usually instrumentation/#-#-#... where # is the number of instances each filter has in the pipeline Parameters: dir  the directory Definition at line 49 of file Instrumentation.c. References _InstrumentationData::instDir, and MAX_IDIR_LENGTH.

void instSetUserStates (  InstData *  inst, char **  userStates, int  numStates )

Adds user states to the instrumentation. Todo: Copy the data from user Definition at line 165 of file Instrumentation.c. References _InstState_::isUserState, _InstrumentationData::numUserStates, _InstState_::stateName, _InstState_::timing, and _InstrumentationData::userStates. Referenced by dsInstSetStates().

void instSwitchState (  InstData *  inst, InstState *  state )

switches the state, which means the current one is computed but not stacked, and current is set to the new one Definition at line 126 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstSwitchState().

---
