Instrumentation.h File Reference

#include <sys/time.h>
#include <stack/stack.h>
#include "../constants.h"

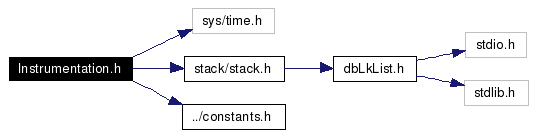

Include dependency graph for Instrumentation.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_InstState_
	this is a state More...
struct	_InstrumentationData
	this holds the instrumentation data More...
Defines
#define	TIMER_NUM_VOID_STATES   9
	WARNING: if you change the number of states above, change here also!
#define	INST_DIR   "instrumentation"
Typedefs
typedef _InstState_	InstState
	this is a state
typedef _InstrumentationData	InstData
	this holds the instrumentation data
Enumerations
enum	TimerState {   TIMER_INIT = 0, TIMER_PROC, TIMER_READ, TIMER_WRITE,   TIMER_WRITE_BLOCKED, TIMER_LS, TIMER_FINALIZE, TIMER_VOID,   TIMER_END }
	The program can be in either of these states proc means processing read means entered a receive function write means entered a write function init means is initializing(initFilter) finalizing mean is in finalize(finalizeFilter) void means time void used for its own end is used to end timing results process is the sum of proc, read and write. More...
Functions
InstData *	instCreate ()
	Starts the instrumentation data, zeroing everything.
void	instDestroy (InstData **InstDataPointerAddress)
	Destroys the Instrumentation data, NULLing the pointer.
void	instSetDir (InstData *inst, char *dir)
	Sets instrumentation directory, where we write instrumentation data.
void	instEnterState (InstData *inst, InstState *state)
	enter a state, which can be a void state or am user state.
void	instSwitchState (InstData *inst, InstState *state)
	switches the state, which means the current one is computed but not stacked, and current is set to the new one
void	instLeaveState (InstData *inst)
	leaves the current state, computing times for it.
void	instSaveTimings (InstData *inst, char *filename, char *label)
	Saves all instrumentation data to a file, appending time there.
void	instSetUserStates (InstData *inst, char **userStatesArray, int numStates)
	Adds user states to the instrumentation.

---

Define Documentation

#define INST_DIR   "instrumentation"

Definition at line 32 of file Instrumentation.h.

#define TIMER_NUM_VOID_STATES   9

WARNING: if you change the number of states above, change here also! Definition at line 24 of file Instrumentation.h. Referenced by instCreate(), and instSaveTimings().

---

Typedef Documentation

typedef struct _InstrumentationData InstData

this holds the instrumentation data

typedef struct _InstState_ InstState

this is a state

---

Enumeration Type Documentation

enum TimerState

The program can be in either of these states proc means processing read means entered a receive function write means entered a write function init means is initializing(initFilter) finalizing mean is in finalize(finalizeFilter) void means time void used for its own end is used to end timing results process is the sum of proc, read and write. Enumerator: TIMER_INIT  TIMER_PROC  TIMER_READ  TIMER_WRITE  TIMER_WRITE_BLOCKED  TIMER_LS  TIMER_FINALIZE  TIMER_VOID  TIMER_END  Definition at line 18 of file Instrumentation.h.

---

Function Documentation

InstData* instCreate (   )

Starts the instrumentation data, zeroing everything. Returns: the instrumentation data created Definition at line 9 of file Instrumentation.c. References _InstState_::isUserState, _InstState_::stateName, TIMER_NUM_VOID_STATES, _InstState_::timing, and _InstrumentationData::voidStates. Referenced by createFilterData().

void instDestroy (  InstData **  InstDataPointerAddress  )

Destroys the Instrumentation data, NULLing the pointer. Parameters: InstDataPointerAddress  the address of the Instrumentation data pointer, which will be NULL after this call Definition at line 34 of file Instrumentation.c. References _InstrumentationData::numUserStates, _InstState_::stateName, and _InstrumentationData::userStates.

void instEnterState (  InstData *  inst, InstState *  state )

enter a state, which can be a void state or am user state. The current state timings are computed and is stacked, so we can return to it later Parameters: state  the state we are changing to isUserState  is this state a user state? Definition at line 93 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::stackedStates, stPush(), _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstEnterState(), dsMCast(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSend(), and dsWriteBuffer(). Here is the call graph for this function:

void instLeaveState (  InstData *  inst  )

leaves the current state, computing times for it. The current state is set to the Top of the stack, which is poped Parameters: inst  the instrumentation data Definition at line 107 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::stackedStates, stPop(), _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstLeaveState(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSend(), and dsWriteBuffer(). Here is the call graph for this function:

void instSaveTimings (  InstData *  inst, char *  filename, char *  label )

Saves all instrumentation data to a file, appending time there. Parameters: filename  the name of the file to save label  a label to write with the timing results Definition at line 135 of file Instrumentation.c. References _InstrumentationData::instDir, MAX_FNAME_LENGTH, MAX_IDIR_LENGTH, _InstState_::stateName, TIMER_NUM_VOID_STATES, _InstState_::timing, and _InstrumentationData::voidStates.

void instSetDir (  InstData *  inst, char *  dir )

Sets instrumentation directory, where we write instrumentation data. Its usually instrumentation/#-#-#... where # is the number of instances each filter has in the pipeline Parameters: dir  the directory Definition at line 49 of file Instrumentation.c. References _InstrumentationData::instDir, and MAX_IDIR_LENGTH.

void instSetUserStates (  InstData *  inst, char **  userStates, int  numStates )

Adds user states to the instrumentation. Todo: Copy the data from user Definition at line 165 of file Instrumentation.c. References _InstState_::isUserState, _InstrumentationData::numUserStates, _InstState_::stateName, _InstState_::timing, and _InstrumentationData::userStates. Referenced by dsInstSetStates().

void instSwitchState (  InstData *  inst, InstState *  state )

switches the state, which means the current one is computed but not stacked, and current is set to the new one Definition at line 126 of file Instrumentation.c. References _InstrumentationData::currentState, _InstrumentationData::tv, and _InstrumentationData::tz. Referenced by dsInstSwitchState().

---
