Task.h File Reference

#include <pthread.h>
#include "TaskIdList.h"
#include "DataSpace.h"
#include "cser.h"
#include "hash.h"

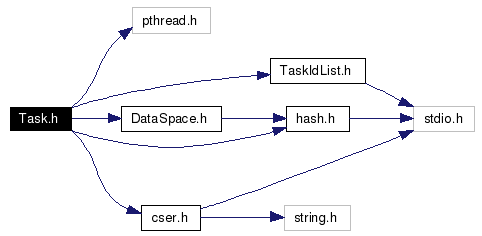

Include dependency graph for Task.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct _task_

Defines

#define KEY_INT

#define VAL_VOID

Typedefs

typedef _task_ Task

Enumerations

enum TaskState_t { created, running, finished }

Functions

Task * createTask ()

void destroyTask (Task *task)

void setTaskEndedTasks (Task *task, int endedTasks)

void setTaskState (Task *task, TaskState_t state)

void setTaskMetadata (Task *task, const char *metadata, const int metaSize)

void setTaskMyDeps (Task *task, TaskIdList *list)

void setTaskDataSpace (Task *task, DataSpace *dataSpace)

void setTaskDependsOnMe (Task *task, TaskIdList *list)

void setTaskMother (Task *task, Task *mother)

void setTaskId (Task *task, int id)

void addTaskToDependsOnMe (Task *task, int taskId)

void taskAddChild (Task *mother, int childId, Task *child)

HashIntVoid * taskTakeChildren (Task *task)

void taskMove (Task *dest, Task *src)

Move all data from task struct src to dest, destroy dest values and src.

int getTaskEndedTasks (Task *task)

int getTaskMetasize (Task *task)

TaskState_t getTaskState (Task *task)

char * getTaskMetadata (Task *task)

TaskIdList * getTaskMyDeps (Task *task)

TaskIdList * getTaskDependsOnMe (Task *task)

HashIntVoid * getTaskChildren (Task *task)

DataSpace * getTaskDataSpace (Task *task)

Task * getTaskMother (Task *task)

int getTaskId (Task *task)

int writeTask (FILE *outputFile, void *task)

void * readTask (FILE *inputFile)

int writeChildTask (FILE *outputFile, void *task)

writeChildTask() writes only the necessary to

void * readChildTask (FILE *inputFile)

int compareTasks (Task *task1, Task *task2)

if ret == 0 task1 is equal to task2 else no

Define Documentation

#define KEY_INT

Definition at line 11 of file Task.h.

#define VAL_VOID

Definition at line 12 of file Task.h.

Typedef Documentation

typedef struct _task_ Task

Enumeration Type Documentation

enum TaskState_t

Enumerator:

created

running

finished

Definition at line 18 of file Task.h.

Function Documentation

void addTaskToDependsOnMe ( Task * task,

int taskId

)

Definition at line 92 of file Task.c.
References _task_::dependsOnMe, dependsOnMeMutex, taskIdListAdd(), and taskIdListCreate().
Here is the call graph for this function:

int compareTasks ( Task * task1,

Task * task2

)

if ret == 0 task1 is equal to task2 else no

Definition at line 382 of file Task.c.
References _task_::children, compareTasks(), _task_::dependsOnMe, _task_::endedTasks, _task_::id, _task_::metadata, _task_::metaSize, _task_::myDeps, _task_::state, taskIdListCompare(), and taskIdListGetSize().
Referenced by compareTasks().

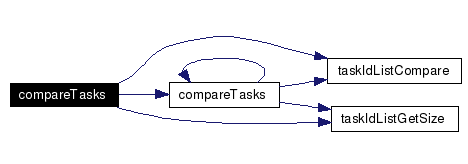

Here is the call graph for this function:

Task* createTask ( )

Definition at line 15 of file Task.c.
References _task_::children, created, createDataSpace(), _task_::dataSpace, _task_::dependsOnMe, _task_::endedTasks, _task_::metadata, _task_::metaSize, _task_::mother, readChildTask(), _task_::state, and writeChildTask().
Referenced by cachePutData(), readChildTask(), and readTask().

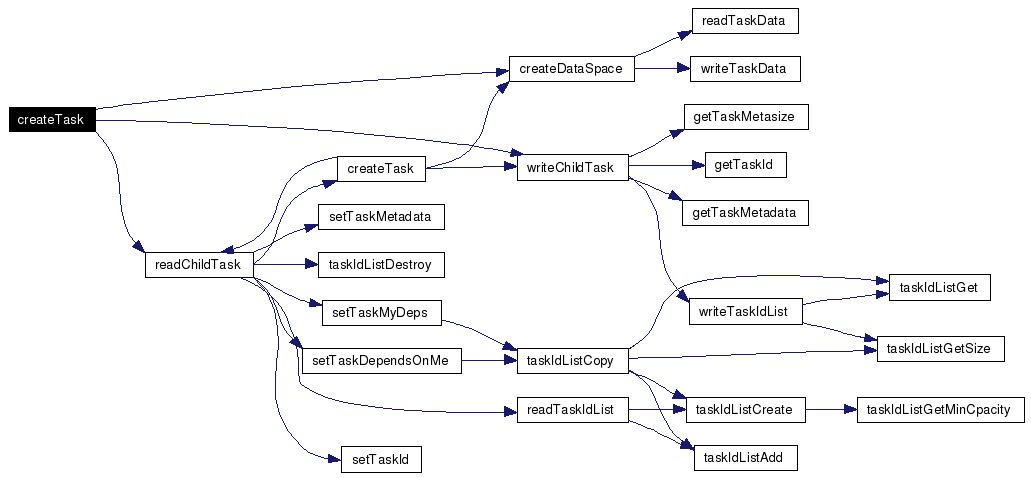

Here is the call graph for this function:

void destroyTask ( Task * task )

Definition at line 35 of file Task.c.
References _task_::children, _task_::dependsOnMe, _task_::metadata, _task_::myDeps, and taskIdListDestroy().
Referenced by cacheRecoverTasks().
Here is the call graph for this function:

HashIntVoid* getTaskChildren ( Task * task )

Definition at line 209 of file Task.c.
References _task_::children.

DataSpace* getTaskDataSpace ( Task * task )

Definition at line 213 of file Task.c.
References _task_::dataSpace.
Referenced by cacheGetData(), cachePutData(), cacheRemoveData(), and writeTask().

TaskIdList* getTaskDependsOnMe ( Task * task )

Definition at line 200 of file Task.c.
References _task_::dependsOnMe.

int getTaskEndedTasks ( Task * task )

Definition at line 158 of file Task.c.
References _task_::endedTasks.
Referenced by writeTask().

int getTaskId ( Task * task )

Definition at line 221 of file Task.c.
References _task_::id.
Referenced by writeChildTask(), and writeTask().

char* getTaskMetadata ( Task * task )

Definition at line 182 of file Task.c.
References _task_::metadata.
Referenced by writeChildTask(), and writeTask().

int getTaskMetasize ( Task * task )

Definition at line 166 of file Task.c.
References _task_::metaSize.
Referenced by writeChildTask(), and writeTask().

Task* getTaskMother ( Task * task )

Definition at line 217 of file Task.c.
References _task_::mother.

TaskIdList* getTaskMyDeps ( Task * task )

Definition at line 191 of file Task.c.
References _task_::myDeps.
Referenced by cacheGetTaskDeps().

TaskState_t getTaskState ( Task * task )

Definition at line 174 of file Task.c.
References _task_::state.
Referenced by cacheEndTask(), cacheGetData(), cacheSetCurrentTask(), and writeTask().

void* readChildTask ( FILE * inputFile )

Definition at line 341 of file Task.c.
References createTask(), READ_BEGIN, READ_BYTES, READ_END, READ_NUM, readTaskIdList(), setTaskDependsOnMe(), setTaskId(), setTaskMetadata(), setTaskMyDeps(), and taskIdListDestroy().
Referenced by createTask().
Here is the call graph for this function:

void* readTask ( FILE * inputFile )

Definition at line 258 of file Task.c.
References _task_::children, createDataSpace(), createTask(), _task_::mother, READ_BEGIN, READ_BYTES, READ_END, READ_NUM, readDataSpace(), readTaskIdList(), setTaskDataSpace(), setTaskDependsOnMe(), setTaskEndedTasks(), setTaskId(), setTaskMetadata(), setTaskMyDeps(), setTaskState(), and taskIdListDestroy().
Referenced by cacheRecoverTasks().

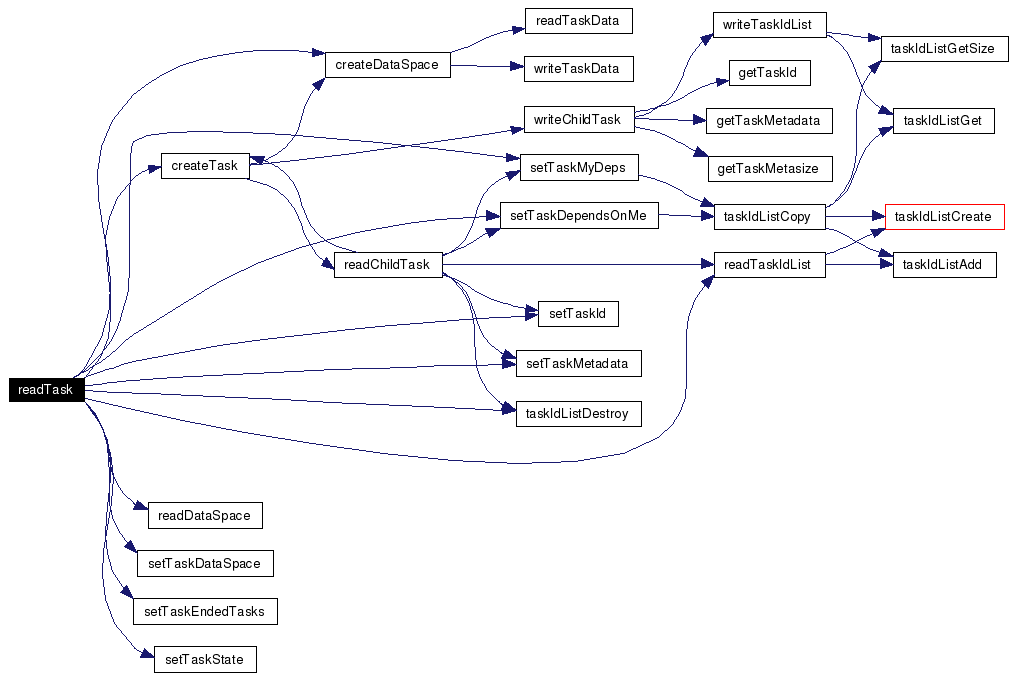

Here is the call graph for this function:

void setTaskDataSpace ( Task * task,

DataSpace * dataSpace

)

Definition at line 76 of file Task.c.
References _task_::dataSpace.
Referenced by readTask().

void setTaskDependsOnMe ( Task * task,

TaskIdList * list

)

Definition at line 80 of file Task.c.
References _task_::dependsOnMe, dependsOnMeMutex, and taskIdListCopy().
Referenced by readChildTask(), and readTask().

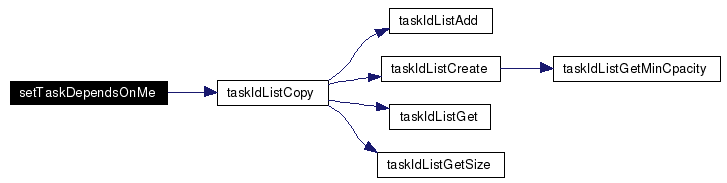

Here is the call graph for this function:

void setTaskEndedTasks ( Task * task,

int endedTasks

)

Definition at line 53 of file Task.c.
References _task_::endedTasks.
Referenced by readTask().

void setTaskId ( Task * task,

int id

)

Definition at line 120 of file Task.c.
References _task_::id.
Referenced by readChildTask(), and readTask().

void setTaskMetadata ( Task * task,

const char * metadata,

const int metaSize

)

Definition at line 65 of file Task.c.
References _task_::metadata, and _task_::metaSize.
Referenced by readChildTask(), and readTask().

void setTaskMother ( Task * task,

Task * mother

)

Definition at line 116 of file Task.c.
References _task_::mother.

void setTaskMyDeps ( Task * task,

TaskIdList * list

)

Definition at line 61 of file Task.c.
References _task_::myDeps, and taskIdListCopy().
Referenced by readChildTask(), and readTask().

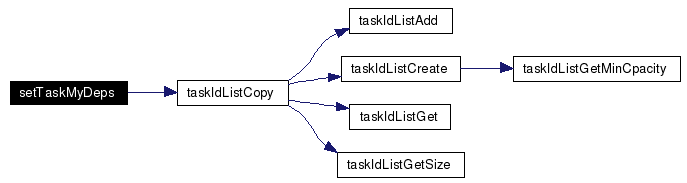

Here is the call graph for this function:

void setTaskState ( Task * task,

TaskState_t state

)

Definition at line 57 of file Task.c.
References _task_::state.
Referenced by cacheEndTask(), cacheRecoverTasks(), cacheRunTask(), and readTask().

void taskAddChild ( Task * mother,

int childId,

Task * child

)

Definition at line 103 of file Task.c.
References _task_::children, and _task_::mother.
Referenced by cacheRecoverTasks().

void taskMove ( Task * dest,

Task * src

)

Move all data from task struct src to dest, destroy dest values and src.

Definition at line 125 of file Task.c.
References _task_::children, _task_::dataSpace, _task_::dependsOnMe, destroyDataSpace(), _task_::endedTasks, _task_::id, _task_::metadata, _task_::metaSize, _task_::mother, _task_::myDeps, _task_::state, and taskIdListDestroy().
Here is the call graph for this function:

HashIntVoid* taskTakeChildren ( Task * task )

Definition at line 109 of file Task.c.
References _task_::children.
Referenced by cacheRecoverTasks().

int writeChildTask ( FILE * outputFile,

void * task

)

writeChildTask() writes only the necessary to

Definition at line 320 of file Task.c.
References _task_::dependsOnMe, dependsOnMeMutex, getTaskId(), getTaskMetadata(), getTaskMetasize(), _task_::myDeps, WRITE_BYTES, WRITE_NUM, and writeTaskIdList().
Referenced by createTask().

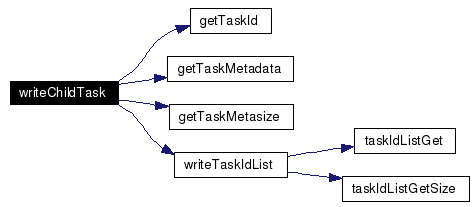

Here is the call graph for this function:

int writeTask ( FILE * outputFile,

void * task

)

Definition at line 227 of file Task.c.
References _task_::children, _task_::dependsOnMe, dependsOnMeMutex, getTaskDataSpace(), getTaskEndedTasks(), getTaskId(), getTaskMetadata(), getTaskMetasize(), getTaskState(), _task_::myDeps, WRITE_BYTES, WRITE_NUM, writeDataSpace(), and writeTaskIdList().
Referenced by writerThread().

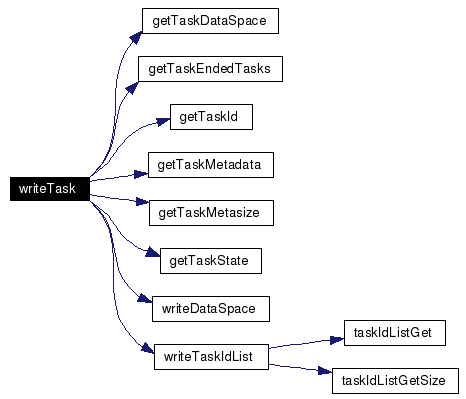

Here is the call graph for this function:

Generated on Tue Jan 17 19:27:16 2006 for Void by

1.4.6
