dbLkList.h File Reference

#include <stdio.h>
#include <stdlib.h>

Include dependency graph for dbLkList.h:

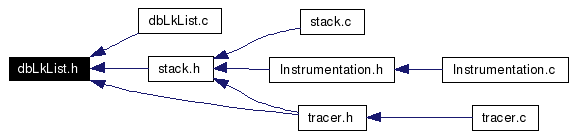

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct _DbLkListNodeContent

each node in the list contains this struct More...

struct _DbLkListNode

a node in the list, has the content above and pointers to next and previous More...

struct _DbLkList

the list structure, holds pointer to tail and head, the number of elements, and callback functions More...

Typedefs

typedef _DbLkList * ListP

typedef void() ListVisitFunction (ListP, void *object)

typedef void() ListPrintFunction (ListP, void *object)

typedef void() ListDeleteFunction (ListP, void *object)

typedef _DbLkListNodeContent DbLkListNodeContent

each node in the list contains this struct

typedef _DbLkListNode DbLkListNode

a node in the list, has the content above and pointers to next and previous

typedef _DbLkList DbLkList

the list structure, holds pointer to tail and head, the number of elements, and callback functions

Enumerations

enum DbLkDestroyMode { DBLIST_DM_KEEP = 0, DBLIST_DM_FREE }

this types indicates if we shall free contents More...

enum DbLkTransMode { DBLIST_TM_FROM_HEAD, DBLIST_TM_FROM_TAIL }

the way we shall transverse the list More...

Functions

DbLkList * listCreate ()

Initializes the empty list.

void listDestroy (DbLkList **list, DbLkDestroyMode mode)

Destroys the list.

int listPrepare (DbLkList *list, DbLkTransMode from)

prepares the list for itaration.

int listGetNext (DbLkList *list, void **object)

get next node

int listGetPrevious (DbLkList *list, void **object)

get previous node

int listInsertHead (DbLkList *list, void *object)

Inserts an object in the list, as the new head node.

int listInsertTail (DbLkList *list, void *object)

Inserts an object at the end of the list, as the new tail.

int listInsertAt (DbLkList *list, int position, void *object)

Inserts the object at the given position.

int listGetObjectAt (DbLkList *list, int position, void **objectPointerAddress)

Retrieves the object at the given position, but does not remove it from list.

int listRemoveObjectAt (DbLkList *list, int position, void **objectPointerAddress)

Retrieves the object at the given position, removing it from list.

int listRemoveObject (DbLkList *list, void *object)

Removes the given object from the list.

int listCat (DbLkList *destination, DbLkList **sourceAddress)

Concatenates 2 list.

int listGetHead (DbLkList *list, void **objectAddress)

Retrieves the first element in the list, ie, the head.

int listGetTail (DbLkList *list, void **objectAddress)

Retrieves the first element in the list, ie, the head.

int listRemoveHead (DbLkList *list, void **object)

Removes the list head, returning it at the object pointer argument.

int listRemoveTail (DbLkList *list, void **object)

Removes the list tail, returning it at the object pointer argument.

void listRegisterPrintFunction (DbLkList *list, ListPrintFunction *printFunction)

Registers a function to be called by the print function, in each list node.

void listPrint (DbLkList *list)

Prints the list, from head to tail.

void listVisit (DbLkList *list)

Visits the list, from head to tail, calling the registered function.

void listRegisterDeleteFunction (DbLkList *list, ListDeleteFunction *deleteFunction)

Registers a function to be called by the destroy function, in each list node.

Typedef Documentation

typedef struct _DbLkList DbLkList

the list structure, holds pointer to tail and head, the number of elements, and callback functions

typedef struct _DbLkListNode DbLkListNode

a node in the list, has the content above and pointers to next and previous

typedef struct _DbLkListNodeContent DbLkListNodeContent

each node in the list contains this struct

typedef void() ListDeleteFunction(ListP, void *object)

Definition at line 30 of file dbLkList.h.

typedef struct _DbLkList* ListP

Definition at line 25 of file dbLkList.h.

typedef void() ListPrintFunction(ListP, void *object)

Definition at line 29 of file dbLkList.h.

typedef void() ListVisitFunction(ListP, void *object)

Definition at line 28 of file dbLkList.h.

Enumeration Type Documentation

enum DbLkDestroyMode

this types indicates if we shall free contents

Enumerator:

DBLIST_DM_KEEP

DBLIST_DM_FREE

Definition at line 18 of file dbLkList.h.

enum DbLkTransMode

the way we shall transverse the list

Enumerator:

DBLIST_TM_FROM_HEAD

DBLIST_TM_FROM_TAIL

Definition at line 23 of file dbLkList.h.

Function Documentation

int listCat ( DbLkList * destination,

DbLkList ** sourceAddress

)

Concatenates 2 list.
The source list is freed, the destination will hold all elements from the other. Source list is concatenated at the end of the destination
Parameters:

destination the destination list, which will hold all info from src

sourceAddress the address of the src list pointer, which will be NULL after this

Returns:
the number of elements of the destination list after concatenation, -1 if an error occurs

Definition at line 285 of file dbLkList.c.
References _DbLkList::head, _DbLkListNode::next, _DbLkList::numElements, _DbLkListNode::previous, and _DbLkList::tail.

DbLkList* listCreate ( )

Initializes the empty list.

Returns:
the empty list, just created

Definition at line 87 of file dbLkList.c.
References _DbLkList::deleteFunction, _DbLkList::head, _DbLkList::lastVisited, _DbLkListNode::next, _DbLkList::numElements, _DbLkListNode::previous, _DbLkList::printFunction, _DbLkList::tail, and _DbLkList::visitFunction.
Referenced by stCreate(), and trcCreateData().

void listDestroy ( DbLkList ** list,

DbLkDestroyMode mode

)

Destroys the list.
If theres a registered free function, it will be called for each node
Parameters:

list the address of the list pointer being destroyed. List pointer will be NULL after this

mode should the content be destroyed? If so, user function will get called, otherwise, a simple free is called on content

Definition at line 104 of file dbLkList.c.
References DBLIST_DM_FREE, _DbLkList::deleteFunction, listRemoveObjectAt(), and _DbLkList::numElements.
Referenced by stDestroy().
Here is the call graph for this function:

int listGetHead ( DbLkList * list,

void ** objectAddress

)

Retrieves the first element in the list, ie, the head.
Does not remove from the list
Parameters:

list the list being searched

objectAddress the address of an object pointer, so we can return a pointer to the object

Returns:
1 if successful, -1 otherwise(empty list)

Definition at line 272 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::head, _DbLkListNode::next, _DbLkListNode::nodeContent, and _DbLkList::numElements.

int listGetNext ( DbLkList * list,

void ** object

)

get next node

Returns:
-1 when pointer is at list last valid element, 1 otherwise

Definition at line 138 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::lastVisited, _DbLkListNode::next, _DbLkListNode::nodeContent, and _DbLkList::tail.
Referenced by stDestroy().

int listGetObjectAt ( DbLkList * list,

int position,

void ** objectPointerAddress

)

Retrieves the object at the given position, but does not remove it from list.

Parameters:

list the list being searched

position the position we are getting. 0 is the list head(first element).

objectPointerAddress the address of an object pointer, so we can return a pointer to the object

Returns:
1 if successful, -1 otherwise(ie, position does not exist)

Definition at line 200 of file dbLkList.c.
References _DbLkListNodeContent::content, and _DbLkListNode::nodeContent.

int listGetPrevious ( DbLkList * list,

void ** object

)

get previous node

Returns:
-1 when pointer is at list first valid element, 1 otherwise

Definition at line 149 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::head, _DbLkList::lastVisited, _DbLkListNode::nodeContent, and _DbLkListNode::previous.

int listGetTail ( DbLkList * list,

void ** objectAddress

)

Retrieves the first element in the list, ie, the head.
Does not remove from the list
Parameters:

list the list being searched

objectAddress the address of an object pointer, so we can return a pointer to the object

Returns:
1 if successful, -1 otherwise(empty list)

Definition at line 264 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkListNode::nodeContent, _DbLkList::numElements, _DbLkListNode::previous, and _DbLkList::tail.
Referenced by stGetTop().

int listInsertAt ( DbLkList * list,

int position,

void * object

)

Inserts the object at the given position.
If position does not exist and is less than 0, it will be a head insertion. Else is a tail insertion.
Parameters:

list the list being inserted

position where the object will be inserted

object the object being inserted

Returns:
-1 on error, 1 otherwise

Definition at line 177 of file dbLkList.c.
References listInsertHead(), listInsertTail(), _DbLkList::numElements, and _DbLkListNode::previous.
Here is the call graph for this function:

int listInsertHead ( DbLkList * list,

void * object

)

Inserts an object in the list, as the new head node.

Parameters:

list the list being inserted

object the object being inserted

Returns:
-1 on error, 1 otherwise

Definition at line 168 of file dbLkList.c.
References _DbLkList::head.
Referenced by listInsertAt().

int listInsertTail ( DbLkList * list,

void * object

)

Inserts an object at the end of the list, as the new tail.

Parameters:

list the list being inserted

object the object being inserted

Returns:
-1 on error, 1 otherwise

Definition at line 172 of file dbLkList.c.
References _DbLkListNode::previous, and _DbLkList::tail.
Referenced by listInsertAt(), and stPush().

int listPrepare ( DbLkList * list,

DbLkTransMode from

)

prepares the list for itaration.
Should be called before getNext or getPrevious
Parameters:

list the list

from tail or head?

Returns:
-1 if list is empty, 1 otherwise

Definition at line 129 of file dbLkList.c.
References DBLIST_TM_FROM_HEAD, _DbLkList::head, _DbLkList::lastVisited, _DbLkList::numElements, and _DbLkList::tail.
Referenced by stDestroy().

void listPrint ( DbLkList * list )

Prints the list, from head to tail.

Parameters:

list the lsit being printed

Definition at line 326 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::head, _DbLkListNode::next, _DbLkListNode::nodeContent, _DbLkList::numElements, and _DbLkList::printFunction.

void listRegisterDeleteFunction ( DbLkList * list,

ListDeleteFunction * deleteFunction

)

Registers a function to be called by the destroy function, in each list node.

Parameters:

list the list

deleteFunction a function, of prototype ListPrintFunction

Definition at line 345 of file dbLkList.c.
References _DbLkList::deleteFunction.

void listRegisterPrintFunction ( DbLkList * list,

ListPrintFunction * printFunction

)

Registers a function to be called by the print function, in each list node.
If this function is not registered, calls to listVisit will return immediately.
Parameters:

list the list

visitFunction a function, of prototype ListVisitFunction

Definition at line 341 of file dbLkList.c.
References _DbLkList::printFunction.

int listRemoveHead ( DbLkList * list,

void ** object

)

Removes the list head, returning it at the object pointer argument.

Returns:
1 if successful, -1 otherwise(list empty)

Definition at line 246 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::head, _DbLkListNode::next, _DbLkListNode::nodeContent, and _DbLkList::numElements.
Referenced by trcFlush().

int listRemoveObject ( DbLkList * list,

void * object

)

Removes the given object from the list.

Parameters:

list the list

object the object being removed

Returns:
1, -1 if object cant be found,

Definition at line 237 of file dbLkList.c.

int listRemoveObjectAt ( DbLkList * list,

int position,

void ** objectPointerAddress

)

Retrieves the object at the given position, removing it from list.

Parameters:

list the list being searched

position the position we are getting. 0 is the list head(first element).

objectPointerAddress the address of an object pointer, so we can return a pointer to the object

Returns:
1 if successful, -1 otherwise(ie, position does not exist)

Definition at line 224 of file dbLkList.c.
References _DbLkListNodeContent::content, and _DbLkListNode::nodeContent.
Referenced by listDestroy().

int listRemoveTail ( DbLkList * list,

void ** object

)

Removes the list tail, returning it at the object pointer argument.

Returns:
1 if successful, -1 otherwise(list empty)

Definition at line 255 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkListNode::nodeContent, _DbLkList::numElements, _DbLkListNode::previous, and _DbLkList::tail.
Referenced by stPop().

void listVisit ( DbLkList * list )

Visits the list, from head to tail, calling the registered function.
If none, return.
Parameters:

list the list being printed

Definition at line 309 of file dbLkList.c.
References _DbLkListNodeContent::content, _DbLkList::head, _DbLkListNode::next, _DbLkListNode::nodeContent, _DbLkList::numElements, and _DbLkList::visitFunction.

Generated on Tue Jan 17 19:20:01 2006 for Void by

1.4.6


Data Structures
struct	_DbLkListNodeContent
	each node in the list contains this struct More...
struct	_DbLkListNode
	a node in the list, has the content above and pointers to next and previous More...
struct	_DbLkList
	the list structure, holds pointer to tail and head, the number of elements, and callback functions More...
Typedefs
typedef _DbLkList *	ListP
typedef void()	ListVisitFunction (ListP, void *object)
typedef void()	ListPrintFunction (ListP, void *object)
typedef void()	ListDeleteFunction (ListP, void *object)
typedef _DbLkListNodeContent	DbLkListNodeContent
	each node in the list contains this struct
typedef _DbLkListNode	DbLkListNode
	a node in the list, has the content above and pointers to next and previous
typedef _DbLkList	DbLkList
	the list structure, holds pointer to tail and head, the number of elements, and callback functions
Enumerations
enum	DbLkDestroyMode { DBLIST_DM_KEEP = 0, DBLIST_DM_FREE }
	this types indicates if we shall free contents More...
enum	DbLkTransMode { DBLIST_TM_FROM_HEAD, DBLIST_TM_FROM_TAIL }
	the way we shall transverse the list More...
Functions
DbLkList *	listCreate ()
	Initializes the empty list.
void	listDestroy (DbLkList **list, DbLkDestroyMode mode)
	Destroys the list.
int	listPrepare (DbLkList *list, DbLkTransMode from)
	prepares the list for itaration.
int	listGetNext (DbLkList list, void *object)
	get next node
int	listGetPrevious (DbLkList list, void *object)
	get previous node
int	listInsertHead (DbLkList list, void object)
	Inserts an object in the list, as the new head node.
int	listInsertTail (DbLkList list, void object)
	Inserts an object at the end of the list, as the new tail.
int	listInsertAt (DbLkList list, int position, void object)
	Inserts the object at the given position.
int	listGetObjectAt (DbLkList list, int position, void *objectPointerAddress)
	Retrieves the object at the given position, but does not remove it from list.
int	listRemoveObjectAt (DbLkList list, int position, void *objectPointerAddress)
	Retrieves the object at the given position, removing it from list.
int	listRemoveObject (DbLkList list, void object)
	Removes the given object from the list.
int	listCat (DbLkList destination, DbLkList *sourceAddress)
	Concatenates 2 list.
int	listGetHead (DbLkList list, void *objectAddress)
	Retrieves the first element in the list, ie, the head.
int	listGetTail (DbLkList list, void *objectAddress)
	Retrieves the first element in the list, ie, the head.
int	listRemoveHead (DbLkList list, void *object)
	Removes the list head, returning it at the object pointer argument.
int	listRemoveTail (DbLkList list, void *object)
	Removes the list tail, returning it at the object pointer argument.
void	listRegisterPrintFunction (DbLkList list, ListPrintFunction printFunction)
	Registers a function to be called by the print function, in each list node.
void	listPrint (DbLkList *list)
	Prints the list, from head to tail.
void	listVisit (DbLkList *list)
	Visits the list, from head to tail, calling the registered function.
void	listRegisterDeleteFunction (DbLkList list, ListDeleteFunction deleteFunction)
	Registers a function to be called by the destroy function, in each list node.
