tracer.h File Reference

#include <sys/time.h>
#include <sys/resource.h>
#include <unistd.h>
#include <stdarg.h>
#include <string.h>
#include <stack/stack.h>
#include <dbLkList/dbLkList.h>

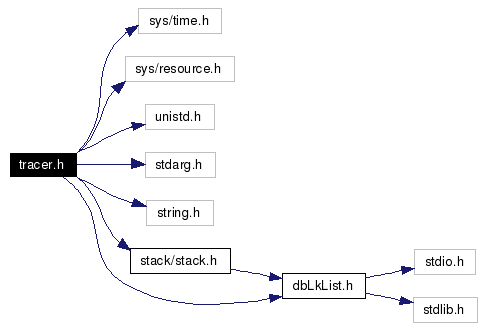

Include dependency graph for tracer.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_TrcAttribute_
	This is a state attribute. More...
struct	_TrcState_
	This is a state. More...
struct	_TrcData_
	This holds the tracing data. More...
Defines
#define	MAXSAVEDSTATES   1000
#define	SEPARATOR   " "
Typedefs
typedef _TrcAttribute_	TrcAttribute
	This is a state attribute.
typedef _TrcState_	TrcState
	This is a state.
typedef _TrcData_	TrcData
	This holds the tracing data.
Functions
TrcData *	trcCreateData (char *filename)
	Starts the tracing data, zeroing everything.
void	trcEnterState (TrcData *trc, char *types,...)
	Enters a specific state, setting the values of the attributes.
void	trcDestroyData (TrcData **trcPointer)
	Destroys the Tracing data, NULLing the pointer.
void	trcLeaveState (TrcData *trc,...)
	leaves the current state, computing times for it.
void	trcFlush (TrcData *trc)
	Saves all tracing data to a file, appending time there.
int *	trcIArrayToTrc (int size, int *array)
void	trcResetCurrentState (TrcData *trc)
	Reset the initial time of the current state, as if trcEnterState was called again ( but no other state is created ).

---

Define Documentation

#define MAXSAVEDSTATES   1000

Definition at line 12 of file tracer.h.

#define SEPARATOR   " "

Definition at line 14 of file tracer.h. Referenced by trcFlush().

---

Typedef Documentation

typedef struct _TrcAttribute_ TrcAttribute

This is a state attribute.

typedef struct _TrcData_ TrcData

This holds the tracing data.

typedef struct _TrcState_ TrcState

This is a state.

---

Function Documentation

TrcData* trcCreateData (  char *  filename  )

Starts the tracing data, zeroing everything. Returns: the tracing data created Definition at line 3 of file tracer.c. References _TrcData_::currentState, _TrcData_::firstFlush, _TrcData_::initTime, listCreate(), _TrcData_::numSavedStates, _TrcData_::numStackedStates, _TrcData_::savedStates, _TrcData_::stackedStates, stCreate(), and _TrcData_::tracefile. Referenced by createFilterData(). Here is the call graph for this function:

void trcDestroyData (  TrcData **  trcPointer  )

Destroys the Tracing data, NULLing the pointer. Parameters: trcPointer  the address of the Tracing data pointer, which will be NULL after this call Definition at line 24 of file tracer.c. References trcFlush(), and trcLeaveState(). Referenced by dsExit(). Here is the call graph for this function:

void trcEnterState (  TrcData *  trc, char *  types,   ... )

Enters a specific state, setting the values of the attributes. Parameters: id  = a pointer to an TrcData structure returned by a previous trcCreateData call; types  = a null terminated string of length = numAttributes specifying the types of the incoming attributes, as above: i = fixed integer s = fixed string Definition at line 53 of file tracer.c. References _TrcState_::numAttributes, and _TrcState_::numPosAttributes. Referenced by dsCloseOutputPort(), dsCreateTask(), dsEndTask(), dsExit(), dsGetCurrentTask(), dsGetInputPortByName(), dsGetLocalInstances(), dsGetMachineMemory(), dsGetMyRank(), dsGetNumReaders(), dsGetNumWriters(), dsGetOutputPortByName(), dsGetTotalInstances(), dsInitPack(), dsInitReceive(), dsPackData(), dsProbe(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSetCurrentTask(), dsUnpackData(), dsWriteBuffer(), and dsWritePackedBuffer().

void trcFlush (  TrcData *  trc  )

Saves all tracing data to a file, appending time there. Parameters: filename  the name of the file to save label  a label to write with the timing results Definition at line 254 of file tracer.c. References _TrcData_::firstFlush, _TrcData_::initTime, listRemoveHead(), _TrcData_::numSavedStates, _TrcData_::savedStates, SEPARATOR, and _TrcData_::tracefile. Referenced by trcDestroyData(). Here is the call graph for this function:

int* trcIArrayToTrc (  int  size, int *  array )

Definition at line 288 of file tracer.c.

void trcLeaveState (  TrcData *  trc,   ... )

leaves the current state, computing times for it. The current state is set to the Top of the stack, which is poped Parameters: trc  Pointer to tracing data Definition at line 130 of file tracer.c. References _TrcState_::attributes, _TrcData_::currentState, _TrcState_::endRusage, _TrcState_::endTime, _TrcState_::numAttributes, _TrcState_::numPosAttributes, _TrcData_::numStackedStates, _TrcData_::stackedStates, stPop(), _TrcAttribute_::type, and _TrcAttribute_::value. Referenced by dsCloseOutputPort(), dsCreateTask(), dsEndTask(), dsExit(), dsGetCurrentTask(), dsGetInputPortByName(), dsGetLocalInstances(), dsGetMachineMemory(), dsGetMyRank(), dsGetNumReaders(), dsGetNumWriters(), dsGetOutputPortByName(), dsGetTotalInstances(), dsInitPack(), dsInitReceive(), dsPackData(), dsProbe(), dsReadBuffer(), dsReadNonBlockingBuffer(), dsSetCurrentTask(), dsUnpackData(), dsWriteBuffer(), dsWritePackedBuffer(), and trcDestroyData(). Here is the call graph for this function:

void trcResetCurrentState (  TrcData *  trc  )

Reset the initial time of the current state, as if trcEnterState was called again ( but no other state is created ). Parameters: trc  Pointer to tracing data Definition at line 125 of file tracer.c. References _TrcData_::currentState, and _TrcState_::initTime. Referenced by dsReadBuffer().

---
