Ports.c File Reference

Input port and output port implementations. More...

#include <stdio.h>
#include <stdlib.h>
#include <dlfcn.h>
#include <pvm3.h>
#include "Ports.h"
#include "../Messages.h"

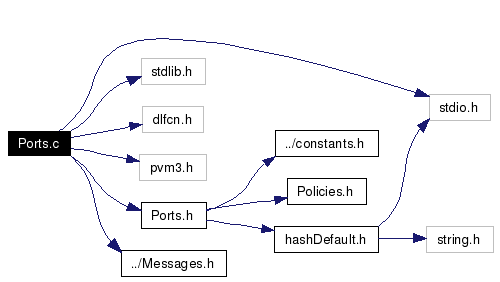

Include dependency graph for Ports.c:

Go to the source code of this file.

Functions
OutputPort *	createOutputPort ()
	constructor
void	destroyOutputPort (OutputPort *o)
	destroyer: must release the libraries
void	resetOutputPort (OutputPort *op)
	resets the output port, i.e open it
void	closeOutputPort (OutputPort *op)
	closes the door, must be called before finalizing if port is not closed
void	setOPState (OutputPort *op, int state)
	set stuff, user can free the second argument after that
void	setOPName (OutputPort *op, const char *name)
void	setOPNumDestinations (OutputPort *op, int num)
void	setOPWritePolicy (OutputPort *op, writePolicy_t p)
void	setOPNextToSend (OutputPort *op, int next)
void	setOPTag (OutputPort *op, const int tag)
void	setOPLibName (OutputPort *op, const char *libname)
void	setOPTidsDestinations (OutputPort *op, const int *tids)
InputPort *	createInputPort ()
	constructor
void	destroyInputPort (InputPort *o)
	destroyer: must release the libraries
void	resetInputPort (InputPort *ip)
	reset an input port. Must be used before starting work
void	setIPName (InputPort *ip, const char *name)
void	setIPNumSources (InputPort *ip, int num)
void	setIPTag (InputPort *ip, int tag)
void	setIPTidsSources (InputPort *ip, const int *tids)
int	loadOPLSData (OutputPort *o)
	This function loads the libraries of the labeled stream, returns 1 on success 0 otherwise.
int	loadOPMLSData (OutputPort *o)

---

Detailed Description

Input port and output port implementations.

Todo:

Make message buffering.

Definition in file Ports.c.

---

Function Documentation

void closeOutputPort (  OutputPort *  op  )

closes the door, must be called before finalizing if port is not closed used to notify manager this filter ended its work Definition at line 48 of file Ports.c. References MSGT_EOW, OutputPort::numDestinations, OP_STATE_CLOSED, setOPState(), OutputPort::state, OutputPort::tag, and OutputPort::tidsDestinations. Referenced by dsCloseOutputPort(). Here is the call graph for this function:

InputPort* createInputPort (   )

constructor Definition at line 126 of file Ports.c. References InputPort::numEowRecv.

OutputPort* createOutputPort (   )

constructor Definition at line 17 of file Ports.c. References setOPState(). Referenced by recvFilterData(). Here is the call graph for this function:

void destroyInputPort (  InputPort *  o  )

destroyer: must release the libraries Definition at line 139 of file Ports.c. Referenced by destroyFilterData().

void destroyOutputPort (  OutputPort *  o  )

destroyer: must release the libraries Definition at line 28 of file Ports.c. References LABELED_STREAM, OutputPort::lsData, __LabeledStreamData::lsHandler, MULTICAST_LABELED_STREAM, and OutputPort::writePolicy.

int loadOPLSData (  OutputPort *  o  )

This function loads the libraries of the labeled stream, returns 1 on success 0 otherwise. Definition at line 187 of file Ports.c. References error, __LabeledStreamData::getLabel, __LabeledStreamData::hash, hashDefault(), __LabeledStreamData::libname, OutputPort::lsData, and __LabeledStreamData::lsHandler. Referenced by recvFilterData(). Here is the call graph for this function:

int loadOPMLSData (  OutputPort *  o  )

Todo: Check the mangled name of this function Definition at line 230 of file Ports.c. References error, __LabeledStreamData::getLabel, __LabeledStreamData::libname, OutputPort::lsData, __LabeledStreamData::lsHandler, __LabeledStreamData::mlshash, and mlsHashDefault(). Referenced by recvFilterData(). Here is the call graph for this function:

void resetInputPort (  InputPort *  ip  )

reset an input port. Must be used before starting work Definition at line 148 of file Ports.c. References InputPort::numEowRecv, and InputPort::tag. Referenced by runFilter().

void resetOutputPort (  OutputPort *  op  )

resets the output port, i.e open it Definition at line 43 of file Ports.c. References OP_STATE_OPEN, and setOPState(). Referenced by runFilter(). Here is the call graph for this function:

void setIPName (  InputPort *  ip, const char *  name )

Definition at line 158 of file Ports.c. References InputPort::name.

void setIPNumSources (  InputPort *  ip, int  num )

Definition at line 163 of file Ports.c. References InputPort::numSources.

void setIPTag (  InputPort *  ip, int  tag )

Definition at line 168 of file Ports.c. References InputPort::tag.

void setIPTidsSources (  InputPort *  ip, const int *  tids )

Definition at line 172 of file Ports.c. References InputPort::numSources, and InputPort::tidsSources.

void setOPLibName (  OutputPort *  op, const char *  libname )

Definition at line 95 of file Ports.c. References __LabeledStreamData::libname, OutputPort::lsData, MAX_HNAME_LENGTH, and MAX_LNAME_LENGTH. Referenced by recvFilterData().

void setOPName (  OutputPort *  op, const char *  name )

Definition at line 71 of file Ports.c. References OutputPort::name. Referenced by recvFilterData().

void setOPNextToSend (  OutputPort *  op, int  next )

Definition at line 86 of file Ports.c. References OutputPort::nextToSend. Referenced by recvFilterData().

void setOPNumDestinations (  OutputPort *  op, int  num )

Definition at line 76 of file Ports.c. References OutputPort::numDestinations. Referenced by recvFilterData().

void setOPState (  OutputPort *  op, int  state )

set stuff, user can free the second argument after that Definition at line 66 of file Ports.c. References OutputPort::state. Referenced by closeOutputPort(), createOutputPort(), and resetOutputPort().

void setOPTag (  OutputPort *  op, const int  tag )

Definition at line 91 of file Ports.c. References OutputPort::tag. Referenced by recvFilterData().

void setOPTidsDestinations (  OutputPort *  op, const int *  tids )

Definition at line 109 of file Ports.c. References OutputPort::numDestinations, and OutputPort::tidsDestinations. Referenced by recvFilterData().

void setOPWritePolicy (  OutputPort *  op, writePolicy_t  p )

Definition at line 81 of file Ports.c. References OutputPort::writePolicy. Referenced by recvFilterData().

---
