stack.h File Reference

#include <dbLkList.h>

Include dependency graph for stack.h:

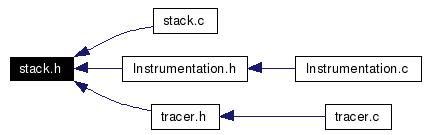

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_Stack_
	this is the stack structure, its just a double linked list we insert tail and remove tail. More...
Typedefs
typedef Stack *	StackP
	function pointers
typedef void()	StDestroyFunction (StackP st, void *object)
typedef _Stack_	Stack
	this is the stack structure, its just a double linked list we insert tail and remove tail.
Enumerations
enum	StDestroyMode { ST_DM_KEEP = 0, ST_DM_FREE }
Functions
Stack *	stCreate ()
	creates an empty stack return the stack created
void	stDestroy (Stack **stackAddress, StDestroyMode mode)
	destroys the stack, mode defines if objects will be destroyed too
int	stPush (Stack *st, void *object)
	inserts an element to the stack
int	stPop (Stack *st, void **objectAddress)
	fill object with the top of the stack, which is removed
int	stGetTop (Stack *st, void **objectAddress)
	get stack top, but does not remove it
int	stNumElements (Stack *st)
	returns the number of elements in the stack
int	stRegisterDestroyFunction (Stack *st, StDestroyFunction *destroyFunction)
	register functions

---

Typedef Documentation

typedef struct _Stack_ Stack

this is the stack structure, its just a double linked list we insert tail and remove tail.

typedef struct Stack* StackP

function pointers Definition at line 7 of file stack.h.

typedef void() StDestroyFunction(StackP st, void *object)

Definition at line 8 of file stack.h.

---

Enumeration Type Documentation

enum StDestroyMode

Enumerator: ST_DM_KEEP  ST_DM_FREE  Definition at line 21 of file stack.h.

---

Function Documentation

Stack* stCreate (   )

creates an empty stack return the stack created Definition at line 5 of file stack.c. References _Stack_::destroyFunction, _Stack_::elements, and listCreate(). Referenced by trcCreateData(). Here is the call graph for this function:

void stDestroy (  Stack **  stackAddress, StDestroyMode  mode )

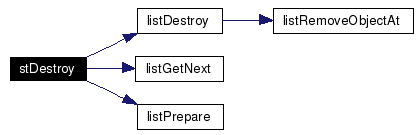

destroys the stack, mode defines if objects will be destroyed too Parameters: stackAddress  the address of the stack, which will be freed and NULLed mode  how we destroy the stack Definition at line 13 of file stack.c. References DBLIST_DM_KEEP, DBLIST_TM_FROM_HEAD, _Stack_::destroyFunction, _Stack_::elements, listDestroy(), listGetNext(), listPrepare(), and ST_DM_KEEP. Here is the call graph for this function:

int stGetTop (  Stack *  st, void **  objectAddress )

get stack top, but does not remove it Definition at line 42 of file stack.c. References _Stack_::elements, and listGetTail(). Here is the call graph for this function:

int stNumElements (  Stack *  st  )

returns the number of elements in the stack Definition at line 46 of file stack.c. References _Stack_::elements, and _DbLkList::numElements.

int stPop (  Stack *  st, void **  objectAddress )

fill object with the top of the stack, which is removed Definition at line 38 of file stack.c. References _Stack_::elements, and listRemoveTail(). Referenced by instLeaveState(), and trcLeaveState(). Here is the call graph for this function:

int stPush (  Stack *  st, void *  object )

inserts an element to the stack Definition at line 34 of file stack.c. References _Stack_::elements, and listInsertTail(). Referenced by instEnterState(). Here is the call graph for this function:

int stRegisterDestroyFunction (  Stack *  st, StDestroyFunction *  destroyFunction )

register functions Definition at line 50 of file stack.c. References _Stack_::destroyFunction.

---
