FilterDev.h File Reference

#include "constants.h"

Include dependency graph for FilterDev.h:

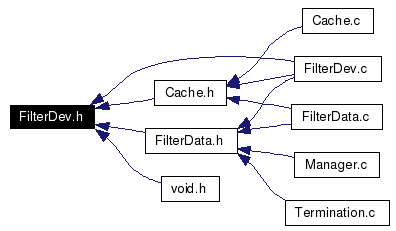

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	VOID_3
#define	EOW   -2
	the end of work message code
#define	ERROR   -3
	Reader functions should return this on a internal error.
Typedefs
typedef int	RecoverCallback_t (int taskId, int *deps, int depSize, char *metadata, int metaSize)
typedef int	InputPortHandler
typedef int	OutputPortHandler
typedef int	initialize_t (void *work, int worksize)
typedef int	process_t (void *work, int worksize)
typedef int	finalize_t ()
Functions
InputPortHandler	dsGetInputPortByName (const char *name)
	get the handlers of ports
OutputPortHandler	dsGetOutputPortByName (const char *name)
int	dsCloseOutputPort (OutputPortHandler oph)
int	dsProbe (InputPortHandler ip)
	funtion to probe an input port for data, returns the size of the buffer, 0 otherwise
int	dsReadBuffer (InputPortHandler ip, void *buf, int szBuf)
	function that reads from other filter(receive and unpack)
int	dsReadNonBlockingBuffer (InputPortHandler iph, void *buf, int szBuf)
	returns 0 if there is no data to be received
int	dsWriteBuffer (OutputPortHandler op, void *buf, unsigned int bufSz)
	function that writes to other filter(pack and send)
int	dsGetNumWriters (InputPortHandler iph)
	these functions return the number of instances on the other side of the strem say, we have a filter A->B.
int	dsGetNumReaders (OutputPortHandler oph)
int	dsInitPack (int initSize)
	function to start packing data, size in bytes
int	dsPackData (void *data, int size)
	function to pack data to the buffer
int	dsWritePackedBuffer (OutputPortHandler oph)
	function to send the packed buffer
int	dsInitReceive (InputPortHandler iph)
	function to receive a buffer, and unpack later
int	dsUnpackData (void *buf, int size)
	function to unpack data
char *	dsGetFilterName ()
	get filter name
int	dsGetFilterId ()
	get filter id
int	dsGetNumInputPorts ()
	function to get the number of one filter input ports
char **	dsGetInputPortNames ()
	function to get all input ports names of one filter
int	dsGetNumOutputPorts ()
	function to get the number of one filter output ports
char **	dsGetOutputPortNames ()
	function to get all output ports names of one filter
int	dsGetNumUpStreamsRunning ()
	get the number of writers to me that are still running
int	dsGetMachineMemory ()
	get the ammount of memory this machine has for this execution
int	dsGetLocalInstances ()
	the number of brothers I have in this machine + 1 brothers are the same filters as me, so say, you have a filter A running here, and 2 Bs runnning here, if A calls this hell get 1, and B will get 2.
int	dsGetMyRank ()
	Function that returns which brother am I.
int	dsGetTotalInstances ()
	returns the total intances of this filter(me + mybrothers)
int	dsExit (char *mesg)
	kill all filters and finish void, user calls this to exit the system abnormally
void	dsUseTasks ()
	Task functions.
int	dsCreateTask (int taskId, int *deps, int depSize, char *metadata, int metaSize)
	creates a new task
int	dsEndTask (int taskId)
	ends a task
int	dsGetCurrentTask ()
	get the current task we are working on
int	dsSetCurrentTask (int taskId)
int *	dsGetTaskDeps (int taskId, int *depsSz)
int	dsGetRunningTasks (int *numTasks, int **taskList)
int *	dsGetFinishedTasks (int *numTasks)
int	dsRegisterRecoverCallback (RecoverCallback_t *callback)
int	dsPutData (char *id, void *val, int valSize)
	Data functions.
int	dsRemoveData (char *id)
void *	dsGetData (int taskId, char *id, int *valSz)
void	dsInstSetStates (char **states, int numStates)
void	dsInstSwitchState (int stateId)
void	dsInstEnterState (int stateId)
void	dsInstLeaveState ()
Variables
initialize_t	initFilter
process_t	processFilter
finalize_t	finalizeFilter

---

Detailed Description

These functions all use the FilterData *fd global variable, which represents the filter on the client side. These functions are all available to the filter developer.

Global variable fd is declared on FilterData.h

Definition in file FilterDev.h.

---

Define Documentation

#define EOW   -2

the end of work message code Definition at line 14 of file FilterDev.h. Referenced by dsInitReceive(), dsReadBuffer(), and dsReadNonBlockingBuffer().

#define ERROR   -3

Reader functions should return this on a internal error. Definition at line 15 of file FilterDev.h. Referenced by dsReadBuffer(), and dsReadNonBlockingBuffer().

#define VOID_3

Definition at line 7 of file FilterDev.h.

---

Typedef Documentation

typedef int finalize_t()

Definition at line 34 of file FilterDev.h.

typedef int initialize_t(void *work, int worksize)

Definition at line 32 of file FilterDev.h.

typedef int InputPortHandler

Definition at line 21 of file FilterDev.h.

typedef int OutputPortHandler

Definition at line 21 of file FilterDev.h.

typedef int process_t(void *work, int worksize)

Definition at line 33 of file FilterDev.h.

typedef int RecoverCallback_t(int taskId, int *deps, int depSize, char *metadata, int metaSize)

Definition at line 17 of file FilterDev.h.

---

Function Documentation

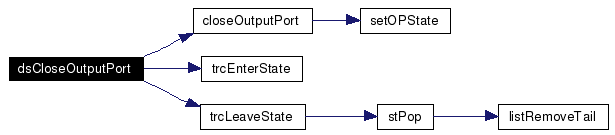

int dsCloseOutputPort (  OutputPortHandler  oph  )

Definition at line 109 of file FilterDev.c. References closeOutputPort(), fd, __FilterData__::outputPorts, trcEnterState(), trcLeaveState(), and VT_OH_CLOSEOPORT. Here is the call graph for this function:

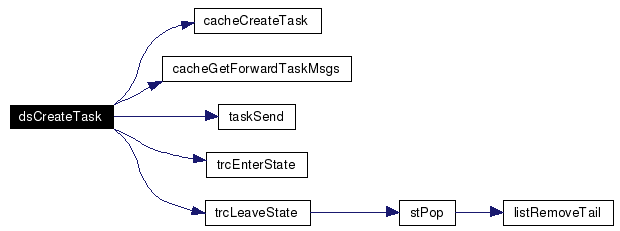

int dsCreateTask (  int  taskId, int *  deps, int  depSize, char *  metadata, int  metaSize )

creates a new task Definition at line 1468 of file FilterDev.c. References cacheCreateTask(), cacheGetForwardTaskMsgs(), fd, taskSend(), trcEnterState(), trcLeaveState(), and VT_OH_CREATETASK. Referenced by defaultRecoveryCallback(), and dsReadBuffer(). Here is the call graph for this function:

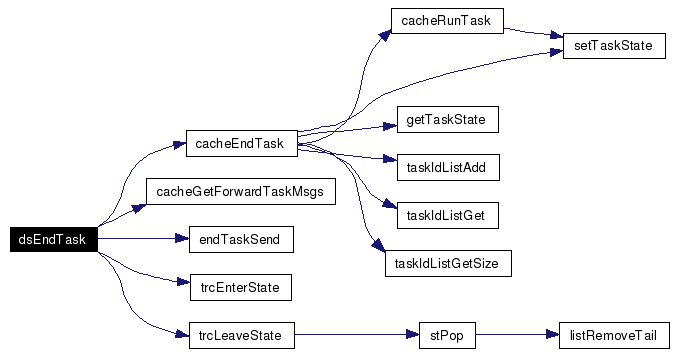

int dsEndTask (  int  taskId  )

ends a task Definition at line 1490 of file FilterDev.c. References cacheEndTask(), cacheGetForwardTaskMsgs(), E_TASK_NOT_RUNNING, endTaskSend(), fd, trcEnterState(), trcLeaveState(), and VT_OH_ENDTASK. Referenced by dsReadNonBlockingBuffer(). Here is the call graph for this function:

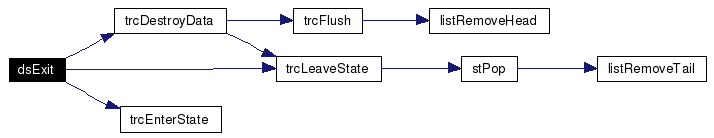

int dsExit (  char *  userMesg  )

kill all filters and finish void, user calls this to exit the system abnormally used to notify manager the application called exit(dsExit) Definition at line 1354 of file FilterDev.c. References fd, MSGT_AEXIT, trcDestroyData(), trcEnterState(), trcLeaveState(), and VT_OH_EXIT. Here is the call graph for this function:

int dsGetCurrentTask (   )

get the current task we are working on Definition at line 1441 of file FilterDev.c. References cacheGetCurrentTask(), fd, trcEnterState(), trcLeaveState(), and VT_OH_GETTASK. Here is the call graph for this function:

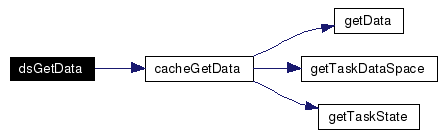

void* dsGetData (  int  taskId, char *  id, int *  valSz )

Definition at line 1513 of file FilterDev.c. References cacheGetData(). Here is the call graph for this function:

int dsGetFilterId (   )

get filter id Definition at line 1276 of file FilterDev.c. References fd, and __FilterData__::id.

char* dsGetFilterName (   )

get filter name Definition at line 1271 of file FilterDev.c. References fd, and __FilterData__::name.

int* dsGetFinishedTasks (  int *  numTasks  )

Definition at line 1555 of file FilterDev.c. References cacheGetFinishedTasks(). Here is the call graph for this function:

InputPortHandler dsGetInputPortByName (  const char *  name  )

get the handlers of ports Definition at line 58 of file FilterDev.c. References fd, __FilterData__::inputPorts, InputPort::name, __FilterData__::numInputPorts, trcEnterState(), trcLeaveState(), and VT_OH_GETIPORT. Here is the call graph for this function:

char** dsGetInputPortNames (   )

function to get all input ports names of one filter Definition at line 1286 of file FilterDev.c. References fd, __FilterData__::inputPorts, InputPort::name, and __FilterData__::numInputPorts.

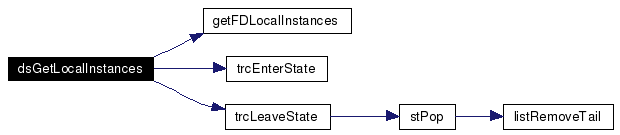

int dsGetLocalInstances (   )

the number of brothers I have in this machine + 1 brothers are the same filters as me, so say, you have a filter A running here, and 2 Bs runnning here, if A calls this hell get 1, and B will get 2. Definition at line 1426 of file FilterDev.c. References fd, getFDLocalInstances(), trcEnterState(), trcLeaveState(), and VT_OH_GETLI. Here is the call graph for this function:

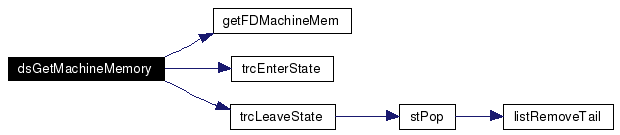

int dsGetMachineMemory (   )

get the ammount of memory this machine has for this execution Definition at line 1418 of file FilterDev.c. References fd, getFDMachineMem(), trcEnterState(), trcLeaveState(), and VT_OH_GETMEM. Here is the call graph for this function:

int dsGetMyRank (   )

Function that returns which brother am I. Definition at line 1332 of file FilterDev.c. References fd, __FilterData__::myRank, trcEnterState(), trcLeaveState(), and VT_OH_GETMYRANK. Here is the call graph for this function:

int dsGetNumInputPorts (   )

function to get the number of one filter input ports Definition at line 1281 of file FilterDev.c. References fd, and __FilterData__::numInputPorts.

int dsGetNumOutputPorts (   )

function to get the number of one filter output ports Definition at line 1300 of file FilterDev.c. References fd, and __FilterData__::numOutputPorts.

int dsGetNumReaders (  OutputPortHandler  oph  )

Definition at line 144 of file FilterDev.c. References fd, OutputPort::numDestinations, __FilterData__::numOutputPorts, __FilterData__::outputPorts, trcEnterState(), trcLeaveState(), and VT_OH_GETNR. Here is the call graph for this function:

int dsGetNumUpStreamsRunning (   )

get the number of writers to me that are still running Definition at line 1319 of file FilterDev.c. References fd, __FilterData__::inputPorts, InputPort::numEowRecv, __FilterData__::numInputPorts, and InputPort::numSources.

int dsGetNumWriters (  InputPortHandler  iph  )

these functions return the number of instances on the other side of the strem say, we have a filter A->B. B knows it will receive one message only from each A. He can use this number to leave a loop like while (numMessages != dsGetNumWriters(iph)) Definition at line 124 of file FilterDev.c. References fd, __FilterData__::inputPorts, __FilterData__::numInputPorts, InputPort::numSources, trcEnterState(), trcLeaveState(), and VT_OH_GETNW. Here is the call graph for this function:

OutputPortHandler dsGetOutputPortByName (  const char *  name  )

Definition at line 83 of file FilterDev.c. References fd, OutputPort::name, __FilterData__::numOutputPorts, __FilterData__::outputPorts, trcEnterState(), trcLeaveState(), and VT_OH_GETOPORT. Here is the call graph for this function:

char** dsGetOutputPortNames (   )

function to get all output ports names of one filter Definition at line 1305 of file FilterDev.c. References fd, OutputPort::name, __FilterData__::numOutputPorts, and __FilterData__::outputPorts.

int dsGetRunningTasks (  int *  numTasks, int **  taskList )

Definition at line 1550 of file FilterDev.c. References cacheGetRunningTasks(). Here is the call graph for this function:

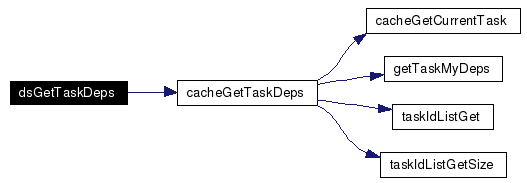

int* dsGetTaskDeps (  int  taskId, int *  depsSz )

Definition at line 1463 of file FilterDev.c. References cacheGetTaskDeps(). Here is the call graph for this function:

int dsGetTotalInstances (   )

returns the total intances of this filter(me + mybrothers) Definition at line 1344 of file FilterDev.c. References fd, __FilterData__::numInstances, trcEnterState(), trcLeaveState(), and VT_OH_GETTI. Here is the call graph for this function:

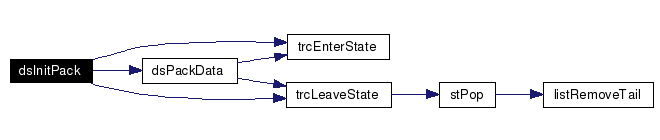

int dsInitPack (  int  initSize  )

function to start packing data, size in bytes Warning: Multithread apps will crash if they use pack and unpack. Deprecated: Packing and unpacking is deprecated, you should use only dsWriteBuffer() and dsReadBuffer(). Definition at line 458 of file FilterDev.c. References BufSt::buffer, dsPackData(), fd, BufSt::maxSize, MINSIZE, BufSt::size, trcEnterState(), trcLeaveState(), and VT_OH_INITPACK. Here is the call graph for this function:

int dsInitReceive (  InputPortHandler  iph  )

function to receive a buffer, and unpack later Warning: Multithread apps will crash if they use pack and unpack. Deprecated: Packing and unpacking is deprecated, you should use only dsWriteBuffer() and dsReadBuffer(). Definition at line 1061 of file FilterDev.c. References EOW, fd, trcEnterState(), trcLeaveState(), and VT_OH_IRECEIVE. Here is the call graph for this function:

void dsInstEnterState (  int  stateId  )

Definition at line 1537 of file FilterDev.c. References fd, and instEnterState(). Here is the call graph for this function:

void dsInstLeaveState (   )

Definition at line 1544 of file FilterDev.c. References fd, and instLeaveState(). Here is the call graph for this function:

void dsInstSetStates (  char **  states, int  numStates )

Definition at line 1525 of file FilterDev.c. References fd, and instSetUserStates(). Here is the call graph for this function:

void dsInstSwitchState (  int  stateId  )

Definition at line 1531 of file FilterDev.c. References fd, and instSwitchState(). Here is the call graph for this function:

int dsPackData (  void *  data, int  size )

function to pack data to the buffer Warning: Multithread apps will crash if they use pack and unpack. Deprecated: Packing and unpacking is deprecated, you should use only dsWriteBuffer() and dsReadBuffer(). Definition at line 507 of file FilterDev.c. References BufSt::buffer, fd, BufSt::maxSize, BufSt::size, trcEnterState(), trcLeaveState(), and VT_OH_PACK. Referenced by dsInitPack(). Here is the call graph for this function:

int dsProbe (  InputPortHandler  ip  )

funtion to probe an input port for data, returns the size of the buffer, 0 otherwise Definition at line 1382 of file FilterDev.c. References fd, __FilterData__::inputPorts, InputPort::tag, trcEnterState(), trcLeaveState(), and VT_OH_PROBE. Here is the call graph for this function:

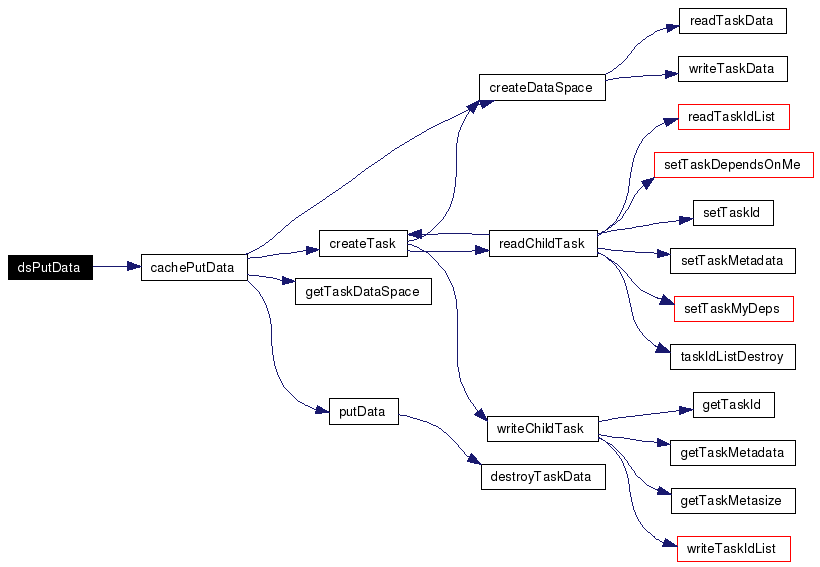

int dsPutData (  char *  id, void *  val, int  valSize )

Data functions. Definition at line 1509 of file FilterDev.c. References cachePutData(). Here is the call graph for this function:

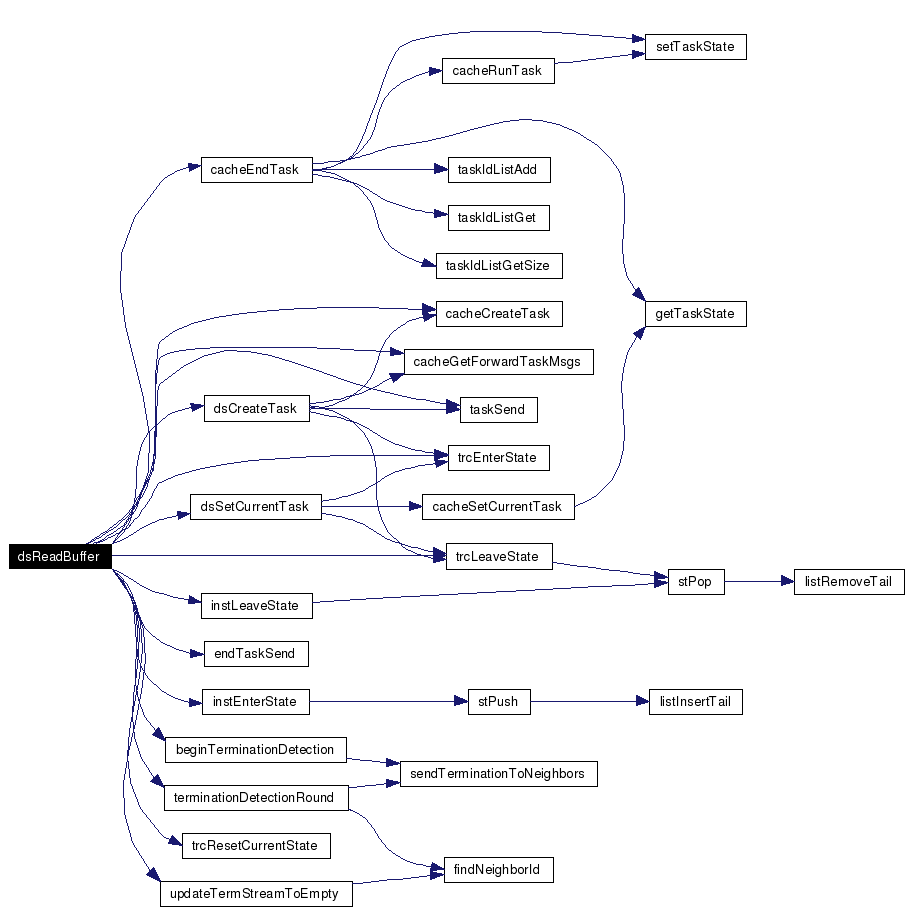

int dsReadBuffer (  InputPortHandler  iph, void *  buf, int  szBuf )

function that reads from other filter(receive and unpack) used to notify filter a new task used to notify filter the end of a task used to notify manager this filter ended its work all filter to filter messages should have this Definition at line 689 of file FilterDev.c. References beginTerminationDetection(), cacheCreateTask(), cacheEndTask(), cacheGetForwardTaskMsgs(), dsCreateTask(), dsSetCurrentTask(), E_TASK_NOT_RUNNING, endTaskSend(), EOW, ERROR, fd, __FilterData__::inputPorts, instEnterState(), instLeaveState(), MSGT_CREATETASK, MSGT_ENDTASK, MSGT_EOW, MSGT_F2F, MSGT_INITTERM, NOTPARTICIPATING, InputPort::numEowRecv, __FilterData__::numInportsAdded, __FilterData__::numInputPorts, InputPort::numSources, _TerminationDetection_::status, InputPort::tag, taskSend(), tdd, terminationDetectionRound(), TIMER_READ, trcEnterState(), trcLeaveState(), trcResetCurrentState(), updateTermStreamToEmpty(), VT_COMM_READ, VT_IDLE_READ, VT_LEAVE_COMM_READ, and VT_OH_RBUFFER. Here is the call graph for this function:

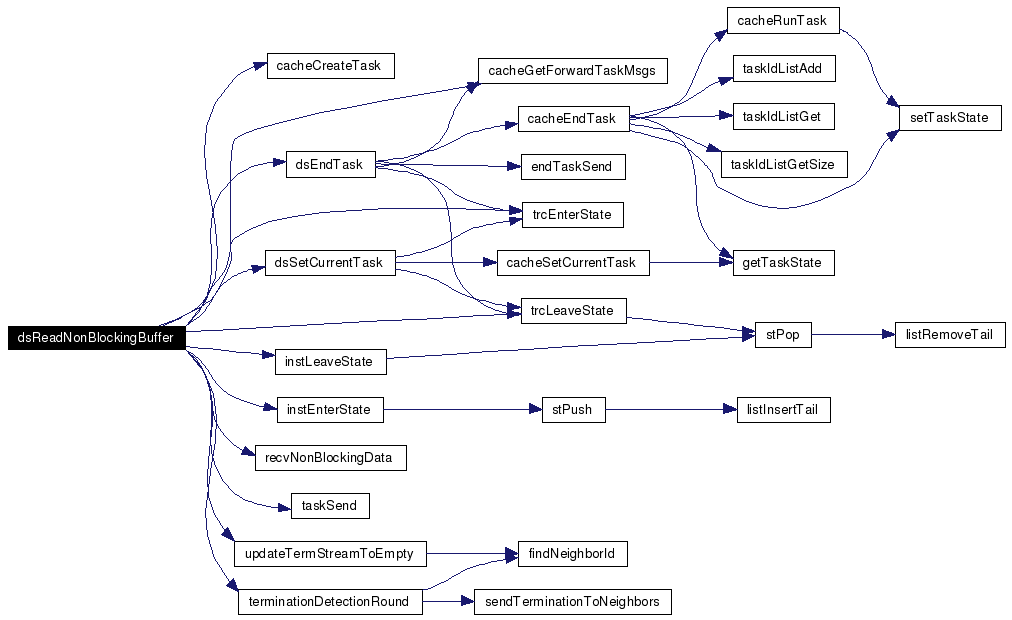

int dsReadNonBlockingBuffer (  InputPortHandler  iph, void *  buf, int  szBuf )

returns 0 if there is no data to be received used to notify filter a new task used to notify filter the end of a task used to notify manager this filter ended its work all filter to filter messages should have this Definition at line 909 of file FilterDev.c. References cacheCreateTask(), cacheGetForwardTaskMsgs(), dsEndTask(), dsSetCurrentTask(), EOW, ERROR, fd, __FilterData__::inputPorts, instEnterState(), instLeaveState(), MSGT_CREATETASK, MSGT_ENDTASK, MSGT_EOW, MSGT_F2F, MSGT_INITTERM, InputPort::numEowRecv, __FilterData__::numInportsAdded, __FilterData__::numInputPorts, InputPort::numSources, recvNonBlockingData(), InputPort::tag, taskSend(), terminationDetectionRound(), TIMER_READ, trcEnterState(), trcLeaveState(), updateTermStreamToEmpty(), VT_COMM_READ, and VT_OH_RBUFFER. Here is the call graph for this function:

int dsRegisterRecoverCallback (  RecoverCallback_t *  callback  )

Definition at line 1559 of file FilterDev.c. References cacheRegisterRecoverCallback(). Here is the call graph for this function:

int dsRemoveData (  char *  id  )

Definition at line 1517 of file FilterDev.c. References cacheRemoveData(). Here is the call graph for this function:

int dsSetCurrentTask (  int  taskId  )

Definition at line 1452 of file FilterDev.c. References cacheSetCurrentTask(), fd, trcEnterState(), trcLeaveState(), and VT_OH_SETTASK. Referenced by dsReadBuffer(), and dsReadNonBlockingBuffer(). Here is the call graph for this function:

int dsUnpackData (  void *  buf, int  size )

function to unpack data Warning: Multithread apps will crash if they use pack and unpack. Deprecated: Packing and unpacking is deprecated, you should use only dsWriteBuffer() and dsReadBuffer(). Todo: Modify this to return what it really read Definition at line 1246 of file FilterDev.c. References BufSt::buffer, fd, BufSt::maxSize, BufSt::size, trcEnterState(), trcLeaveState(), and VT_OH_UNPACK. Here is the call graph for this function:

void dsUseTasks (   )

Task functions. Definition at line 1437 of file FilterDev.c. References cacheSetUseTasks(). Here is the call graph for this function:

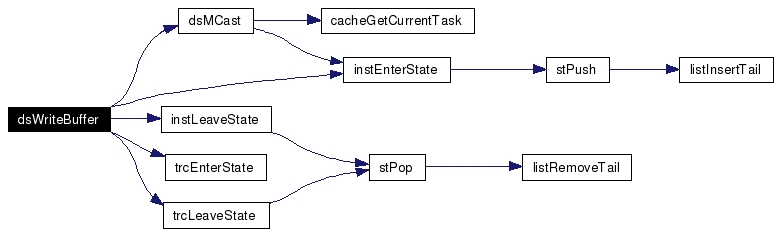

int dsWriteBuffer (  OutputPortHandler  oph, void *  buf, unsigned int  bufSz )

function that writes to other filter(pack and send) 2 things can happen here. Either the message destination is a single instance or message has multiple destinations. we treat the multicast first, then the others all filter to filter messages should have this Definition at line 245 of file FilterDev.c. References BROADCAST, dsMCast(), fd, __LabeledStreamData::getLabel, instEnterState(), instLeaveState(), OutputPort::lsData, MAX_LBL_LENGTH, MAXINSTANCES, __LabeledStreamData::mlshash, MULTICAST_LABELED_STREAM, OutputPort::numDestinations, __FilterData__::outputPorts, OutputPort::tidsDestinations, TIMER_WRITE, trcEnterState(), trcLeaveState(), VT_COMM_WRITE, VT_OH_WBUFFER, and OutputPort::writePolicy. Referenced by dsWritePackedBuffer(). Here is the call graph for this function:

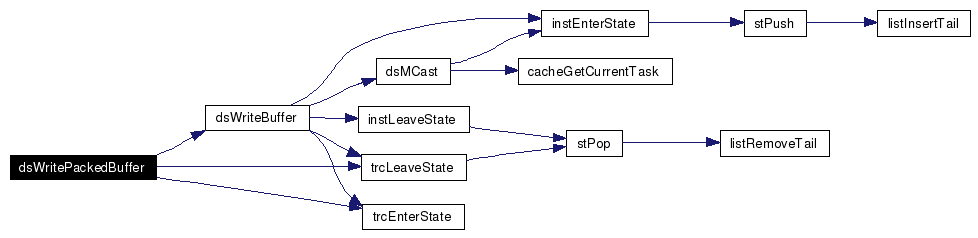

int dsWritePackedBuffer (  OutputPortHandler  oph  )

function to send the packed buffer Warning: Multithread apps will crash if they use pack and unpack. Deprecated: Packing and unpacking is deprecated, you should use only dsWriteBuffer() and dsReadBuffer(). Definition at line 533 of file FilterDev.c. References BufSt::buffer, dsWriteBuffer(), fd, BufSt::size, trcEnterState(), trcLeaveState(), and VT_OH_WPBUFFER. Here is the call graph for this function:

---

Variable Documentation

finalize_t finalizeFilter

Definition at line 38 of file FilterDev.h.

initialize_t initFilter

Definition at line 36 of file FilterDev.h.

process_t processFilter

Definition at line 37 of file FilterDev.h.

---
