FilterData.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <string.h>
#include <dlfcn.h>
#include <pvm3.h>
#include <Task/Task.h>
#include <Cache/Cache.h>
#include "FilterData.h"
#include "Ports.h"
#include "../constants.h"
#include "../Messages.h"

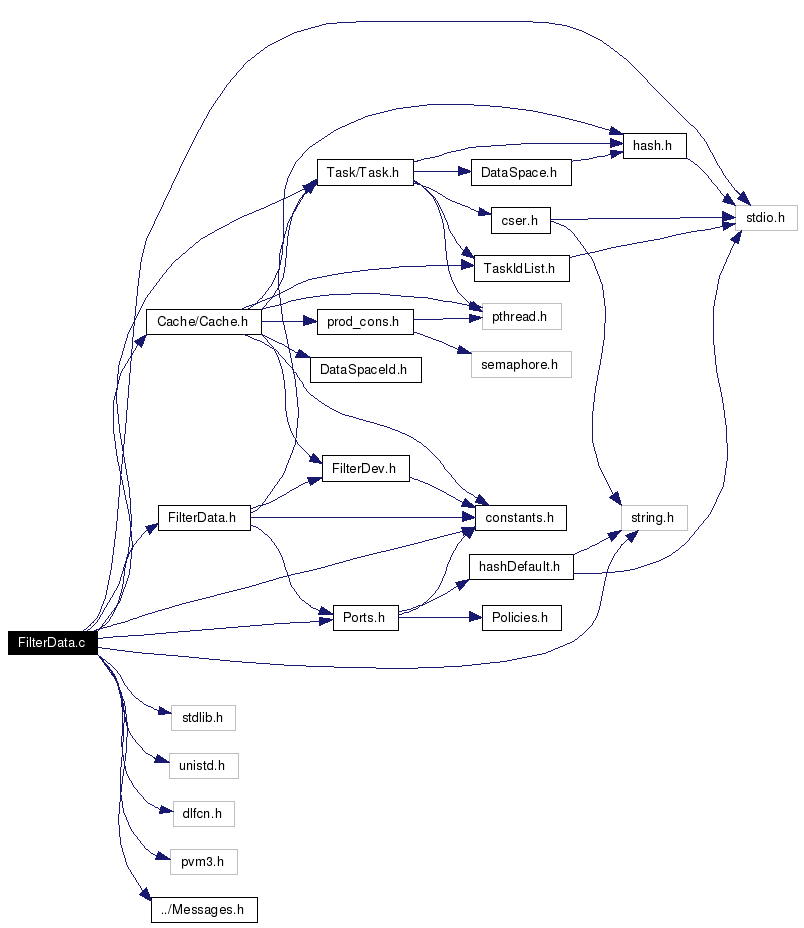

Include dependency graph for FilterData.c:

Go to the source code of this file.

Functions
FilterData *	createFilterData ()
	constructor
void	destroyFilterData (FilterData *fd)
	destroyer
int	setFDNumInputs (FilterData *fd, int numInp)
	Sets the number of inputs of the filter.
int	setFDNumOutputs (FilterData *fd, int numOut)
	Sets the number of output.
char *	getFDName (FilterData *fd)
	Gets the name of filter.
int	setFDName (FilterData *fd, char *name)
	Sets the name of filter.
int	setFDHostName (FilterData *fd, char *hostName)
	Sets the name of the machine where the filter is runnig.
int	getFDNumInstances (FilterData *fd)
	Gets the number of instances of this type of filter.
int	setFDNumInstances (FilterData *fd, int numInstances)
	Sets the number of instances of this type of filter.
void	setFDRank (FilterData *fd, int rank)
	Sets the rank of this instance in his set of filters.
void	setFDIdFilter (FilterData *fd, int id)
	Sets the id of this filter - unique for all filters.
void	setFDTids (FilterData *fd, int *tids)
	sets the tids of this filter, mine and brothers
int	addFDInputPort (FilterData *fd, InputPort *p)
	adds another inputPort to filteData: we only point to InputPort received -- dont free it
int	addFDOutputPort (FilterData *fd, OutputPort *p)
	adds another OutputPort to filteData: we only point to OutputPort received -- dont free it
int	setFDLibName (FilterData *fd, char *libName)
	Sets the libname of the filter: Used to load the filter.
int	loadFDLibFunctions (FilterData *fd)
	this function loads the filter libraries(init process finalize)
int	setFDMachineMem (FilterData *fd, int mem)
	sets the machine memory declared inside the XML file
int	getFDMachineMem (FilterData *fd)
	Gets the ammount of memory the machine this filter runs on has.
int	setFDNumLocalInstances (FilterData *fd, int numLocalInstances)
int	getFDLocalInstances (FilterData *fd)
	get the number of brothers I have in this same machine
int	recvFilterData (FilterData *fData)
void	runFilter ()
	runs the filter

---

Function Documentation

int addFDInputPort (  FilterData *  fd, InputPort *  p )

adds another inputPort to filteData: we only point to InputPort received -- dont free it Definition at line 202 of file FilterData.c. References __FilterData__::inputPorts, MAXINPSTREAMS, and __FilterData__::numInportsAdded.

int addFDOutputPort (  FilterData *  fd, OutputPort *  p )

adds another OutputPort to filteData: we only point to OutputPort received -- dont free it Definition at line 214 of file FilterData.c. References MAXOUTSTREAMS, __FilterData__::numOutportsAdded, and __FilterData__::outputPorts. Referenced by recvFilterData().

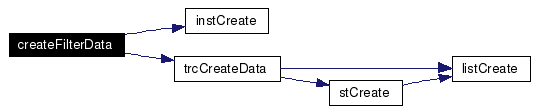

FilterData* createFilterData (   )

constructor Definition at line 51 of file FilterData.c. References instCreate(), MAX_HNAME_LENGTH, __FilterData__::numInportsAdded, __FilterData__::numInputPorts, __FilterData__::numOutportsAdded, __FilterData__::numOutputPorts, and trcCreateData(). Referenced by runFilter(). Here is the call graph for this function:

void destroyFilterData (  FilterData *  fd  )

destroyer Todo: Only free FilterData. Needs to free input e output port. Definition at line 82 of file FilterData.c. References destroyInputPort(), __FilterData__::inputPorts, __FilterData__::libdata, _LibData_::libHandler, and __FilterData__::numInputPorts. Here is the call graph for this function:

int getFDLocalInstances (  FilterData *  fd  )

get the number of brothers I have in this same machine Definition at line 317 of file FilterData.c. References __FilterData__::numLocalInstances. Referenced by dsGetLocalInstances().

int getFDMachineMem (  FilterData *  fd  )

Gets the ammount of memory the machine this filter runs on has. Definition at line 308 of file FilterData.c. References __FilterData__::memory. Referenced by dsGetMachineMemory().

char* getFDName (  FilterData *  fd  )

Gets the name of filter. Definition at line 132 of file FilterData.c. References __FilterData__::name.

int getFDNumInstances (  FilterData *  fd  )

Gets the number of instances of this type of filter. Definition at line 168 of file FilterData.c. References __FilterData__::numInstances.

int loadFDLibFunctions (  FilterData *  fd  )

this function loads the filter libraries(init process finalize) Definition at line 241 of file FilterData.c. References error, _LibData_::finalize, _LibData_::init, __FilterData__::libdata, _LibData_::libHandler, _LibData_::name, and _LibData_::process. Referenced by recvFilterData().

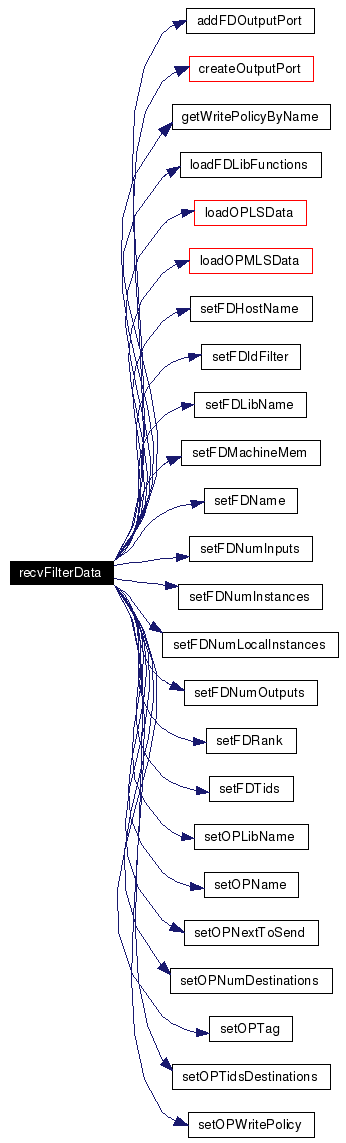

int recvFilterData (  FilterData *  fData  )

used to notify manager some system error happened, and filter is aborting, similar to AEXIT used to notify manager some system error happened, and filter is aborting, similar to AEXIT used to notify manager some system error happened, and filter is aborting, similar to AEXIT Definition at line 321 of file FilterData.c. References addFDOutputPort(), createOutputPort(), getWritePolicyByName(), __FilterData__::hostName, LABELED_STREAM, loadFDLibFunctions(), loadOPLSData(), loadOPMLSData(), MAX_CWD_LENGTH, MAX_FNAME_LENGTH, MAX_HNAME_LENGTH, MAX_IDIR_LENGTH, MAX_LNAME_LENGTH, MAX_PTNAME_LENGTH, MAXINSTANCES, MSGT_FERROR, MULTICAST_LABELED_STREAM, __FilterData__::myRank, __FilterData__::name, __FilterData__::numOutputPorts, setFDHostName(), setFDIdFilter(), setFDLibName(), setFDMachineMem(), setFDName(), setFDNumInputs(), setFDNumInstances(), setFDNumLocalInstances(), setFDNumOutputs(), setFDRank(), setFDTids(), setOPLibName(), setOPName(), setOPNextToSend(), setOPNumDestinations(), setOPTag(), setOPTidsDestinations(), and setOPWritePolicy(). Referenced by runFilter(). Here is the call graph for this function:

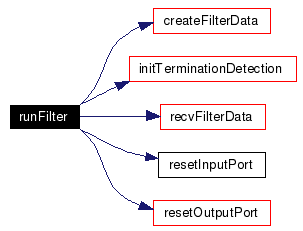

void runFilter (   )

runs the filter Todo: An error ocourred! We should notify manager of this!! Bug: Resetting the ports even before receiving the UOW ISN'T SAFE. Before we even recieve the UOW, the other filters can already started to run and sending valid data to this filter. The only safe way is: send EOW at the end of finalizeFilter() and only drain data from the channels that doesn't recieved a EOW until recieve it if the message type is end of filter, which means, all done Todo: put a signal handler to clean the cache on SIGTERM recievement used to notify manager this filter ended its work Definition at line 563 of file FilterData.c. References createFilterData(), initTerminationDetection(), __FilterData__::inputPorts, __FilterData__::numInputPorts, __FilterData__::numOutputPorts, __FilterData__::outputPorts, recvFilterData(), resetInputPort(), resetOutputPort(), and tdd. Referenced by initDs(). Here is the call graph for this function:

int setFDHostName (  FilterData *  fd, char *  hostName )

Sets the name of the machine where the filter is runnig. Definition at line 153 of file FilterData.c. References __FilterData__::hostName, and MAX_HNAME_LENGTH. Referenced by recvFilterData().

void setFDIdFilter (  FilterData *  fd, int  id )

Sets the id of this filter - unique for all filters. Definition at line 185 of file FilterData.c. References __FilterData__::id. Referenced by recvFilterData().

int setFDLibName (  FilterData *  fd, char *  libName )

Sets the libname of the filter: Used to load the filter. Definition at line 225 of file FilterData.c. References __FilterData__::libdata, MAX_LNAME_LENGTH, and _LibData_::name. Referenced by recvFilterData().

int setFDMachineMem (  FilterData *  fd, int  mem )

sets the machine memory declared inside the XML file Todo: Read memory. Now its hardcoded to 512MB Definition at line 295 of file FilterData.c. References __FilterData__::memory. Referenced by recvFilterData().

int setFDName (  FilterData *  fd, char *  name )

Sets the name of filter. Definition at line 137 of file FilterData.c. References MAX_FNAME_LENGTH, and __FilterData__::name. Referenced by recvFilterData().

int setFDNumInputs (  FilterData *  fd, int  numInp )

Sets the number of inputs of the filter. Definition at line 118 of file FilterData.c. References MAXINPSTREAMS, and __FilterData__::numInputPorts. Referenced by recvFilterData().

int setFDNumInstances (  FilterData *  fd, int  numInstances )

Sets the number of instances of this type of filter. Definition at line 172 of file FilterData.c. References MAXINSTANCES, and __FilterData__::numInstances. Referenced by recvFilterData().

int setFDNumLocalInstances (  FilterData *  fd, int  numLocalInstances )

Definition at line 312 of file FilterData.c. References __FilterData__::numLocalInstances. Referenced by recvFilterData().

int setFDNumOutputs (  FilterData *  fd, int  numOut )

Sets the number of output. Definition at line 126 of file FilterData.c. References __FilterData__::numOutputPorts. Referenced by recvFilterData().

void setFDRank (  FilterData *  fd, int  rank )

Sets the rank of this instance in his set of filters. Definition at line 180 of file FilterData.c. References __FilterData__::myRank. Referenced by recvFilterData().

void setFDTids (  FilterData *  fd, int *  tids )

sets the tids of this filter, mine and brothers Definition at line 190 of file FilterData.c. References __FilterData__::numInstances, and __FilterData__::tids. Referenced by recvFilterData().

---
